Focuscom Enterprise PoE Switches: L2/L3 Gigabit to 2.5G Multi-Gig Access with 10G Uplink for Smart N

In the era of enterprise digital transformation, high-density IP surveillance and Wi-Fi 6/7 corporate Wi-Fi coverage impose strict standards on edge network access layer equipment. Network scaling requires higher power budget distribution, faster line-rate processing, and non-blocking uplinks. As a premier networking vendor, Focuscom proudly introduces its comprehensive, high-performance PoE Managed Switch lineup, engineered to optimize high-density data flows and high-power PoE distribution.

Here are our top 5 inquiry-driving flagship models designed perfectly for worldwide bulk B2B purchase, systemic integration projects, and vertical indutries (including campuses, smart hotels, logistics, and government sectors):

📦 1. S5700 Series: Highly Cost-Effective Gigabit Layer 2 Access

The ideal edge-access deployment choice for Small and Medium Enterprises (SMEs) requiring reliable operations with standard green energy-saving capabilities and ultra-low power consumption.

• S5700-8TP2S (Best for Small Offices & HD IP-Cams)

• Interfaces: 810/100/1000M Base-T PoE Ports + 21000M Base-X SFP Uplink slots.

• Key Metrics: 20Gbps switching capacity, 14.88Mpps forwarding rate; built on a power-efficient Realtek chipset platform.

• PoE Budget: 135W (Supports standard IEEE 802.3af/at with a maximum of 30W per port).

• Form Factor: Compact desktop/rack-mount housing (200×149×44mm) with 1 cooling fan.

• S5700-24TP4TS (High-Density Gigabit Edge Port)

• Interfaces: 2410/100/1000M Base-T PoE Ports + 41000M Combo ports.

• Key Metrics: 56Gbps switching capacity, 41.66Mpps forwarding rate.

• PoE Budget: Massive 450W output, enabling consistent continuous full load power distribution across multiple Powered Devices (PDs).

📦 2. S5710 Series: 10G Uplink & Resilient Layer 3 Stacking

Designed explicitly to resolve backbone bottlenecks. It offers standard 10G SFP+ high-speed data trunks and elastic physical stacking properties, virtualizing up to 8 units via a single management IP to reduce network structural maintenance costs.

• S5710-28TP (The Core/Aggregation Workhorse)

• Interfaces: 2410/100/1000M Base-T PoE Ports + 410G SFP+ Trunking slots.

• Key Metrics: 128Gbps switching capacity, 95.24Mpps forwarding rate; boasts a large 16K MAC address space and 12K Routing entries with Static/Policy-based routing capabilities.

• PoE Budget: Heavy-duty 415W power supply.

• S5710-48TP4S / S5710-48TP4SX (High-Density Mega Corporate Flagship)

• Interfaces: 4810/100/1000M Base-T PoE Ports + 410G SFP+ Trunking slots.

• Key Metrics: Exceptional 176Gbps switching capacity, 130.944Mpps forwarding rate driven by the high-grade RTL9311 processor.

• PoE Budget: Colossal 760W Power Budget! It seamlessly powers full-scale arrays of corporate wireless access points and complex high-wattage PTZ/Infrared network security systems.

📦 3. S5720 Series: Future-Proof 2.5G Multi-Gigabit L3 Flagship

Breaks the constraints of traditional gigabit LANs, supplying ultra-broadband data transmission lanes to unlock the full potential of next-generation corporate Wi-Fi 6/7 hardware.

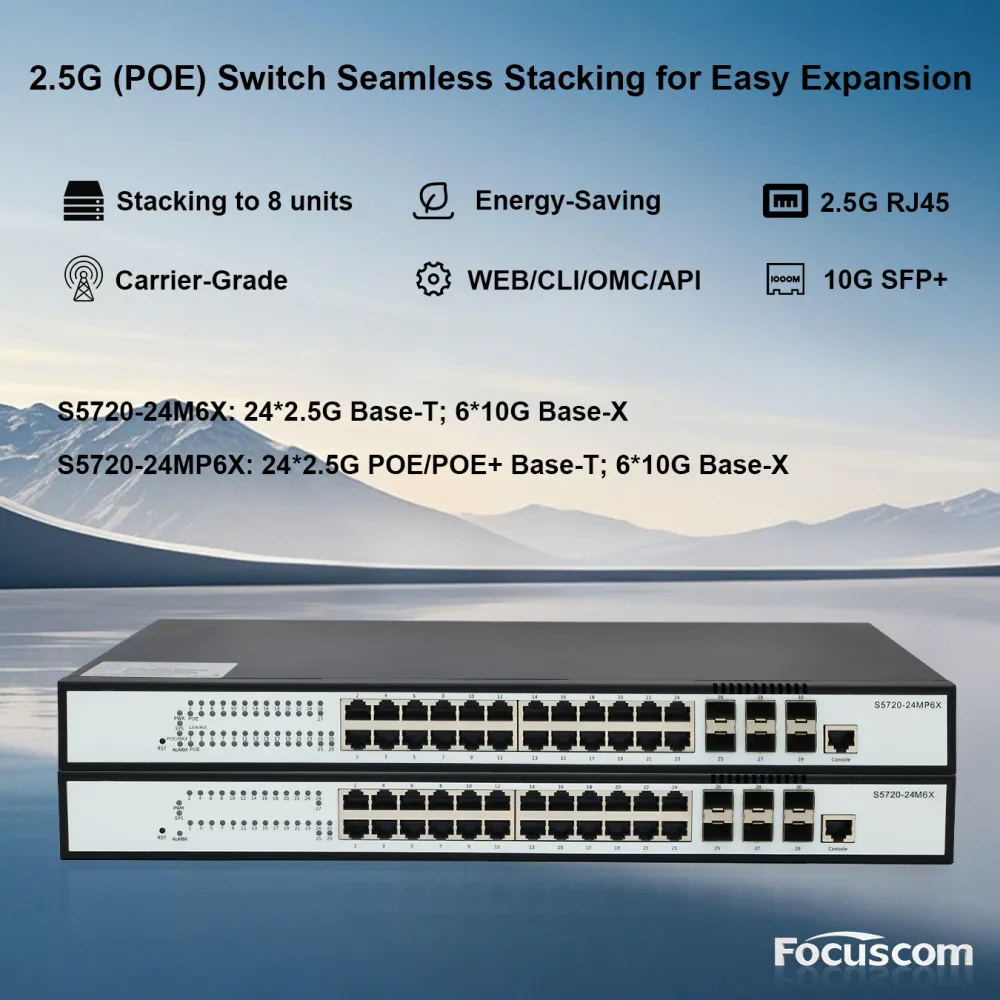

• S5720-24MP6X (Premium 2.5G Full Layer 3 Switch)

• Interfaces: 24100/1000M/2.5G Base-T Multi-Gigabit PoE Ports + 610G SFP+ Uplink slots.

• Ultimate Performance: Boasts an overwhelming 240Gbps switching capacity and 178.57Mpps forwarding rate, engineered using the high-tier RTL9313 processor architecture and corporate Linux operating system.

• PoE Budget: Intelligent 415W smart distribution.

• Advanced L3 Features: Implements a comprehensive IPv4/IPv6 dual-stack infrastructure supporting dynamic routing protocols (RIP, OSPF), rigorous ACL matrices, supreme QoS, IP Source Guard, and high-speed 10G stacking.

•

💡 Why Partner with Focuscom?

1. Supreme Enterprise Security: Integrated with IP+MAC+Port binding protection, 802.1X authorization, SFLOW traffic sampling, and multi-port mirroring analysis to secure critical operational data assets.

2. Industrial-Grade Hardware Longevity: Constructed inside robust metal casings backed by active multi-fan cooling solutions (1-3 cooling fans) to endure non-stop, full-capacity performance under a wide temperature spectrum.

3. Factory Source Wholesale: We offer highly competitive wholesale pricing, full scale OEM/ODM customization options, fast global shipping, and professional technical support.

Contact our sales department today to request comprehensive datasheets, RFQ pricing, and professional network design layout quotes!
