Mini 2-Port vs. Standard 4/8/16-Port OLT: Which Fiber Solution Fits Your Business?

In the rapidly expanding world of Fiber-to-the-Home (FTTH), choosing the right Optical Line Terminal (OLT) is a critical decision that impacts both your initial investment (CAPEX) and long-term operational efficiency (OPEX).

At Focuscom, we offer two distinct categories of GPON OLTs: the ultra-compact GP5801-02 (Mini 2-Port) and the high-capacity GP5800 Series (4/8/16-Port). But which one is right for you? Let’s break down the differences in functionality and application.

The Core Differences: At a Glance

To help you decide, we have compared our Mini and Standard series across several key technical and operational dimensions:

Deep Dive into Functionality

1. Management Depth & Routing

The GP5800 Series is built for core network integration. It supports advanced Layer 3 protocols like BGP and ISIS, making it suitable for medium-sized ISPs that need to manage complex routing tables and carrier-grade traffic.

The GP5801-02 (Mini), while powerful, is designed for "Lean Management." It focuses on essential routing (OSPF/Static) and high-speed Layer 2 switching, making it much easier to deploy and maintain for smaller teams.

2. Physical Design & Cabinet Fit

The Mini OLT is a "space-saver." With a depth of only 200mm, it can fit into shallow outdoor cabinets or simple wall-mounted racks. The Standard GP5800 series follows a full-depth 1U rack-mount design, prioritizing airflow and modular power redundancy for centralized server rooms.

Selecting the Right Application Scenario

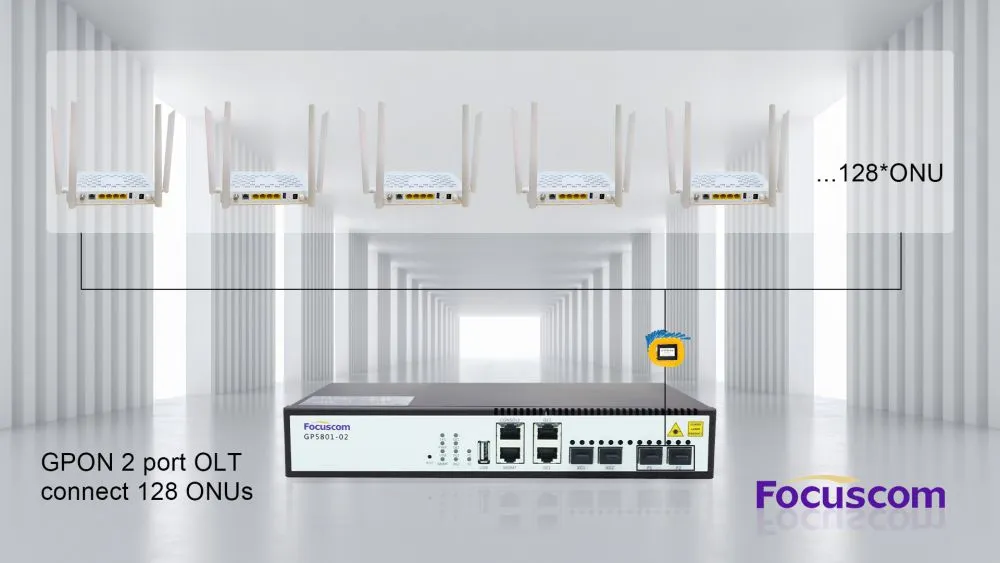

Choose the Mini 2-Port (GP5801-02) If:

• Rural or Remote Access: You are connecting a small village or a remote industrial site.

• Hospitality & Small Enterprise: You need a dedicated fiber network for a hotel, a school building, or a private office park.

• Edge Deployment: You need an efficient entry point at the edge of your network to reduce fiber cabling costs.

• Market Entry: You are operating in regions requiring Postel certification for small-scale rollouts.

Choose the Standard 4/8/16-Port (GP5800) If:

• Urban FTTH Deployment: You are a growing ISP covering high-density residential buildings.

• High Reliability Needs: You require modular, hot-swappable power supplies to ensure 99.999% uptime.

• International Projects: You require CE Certification to meet the rigorous safety and quality standards of European and global markets.

• Future-Proofing: You anticipate rapid subscriber growth and need the 10G SFP+ uplink capacity to prevent bottlenecks.

Conclusion

The "Best" OLT isn't the one with the most ports—it's the one that matches your current subscriber density while allowing for sustainable growth.

The Mini 2-port is your agile, cost-effective choice for boutique projects, while the Standard 4/8/16-port series is the robust, certified workhorse for serious ISP infrastructure.

Focuscom — Delivering Certified, Carrier-Grade Connectivity Worldwide.
